General details
|
YOM: 2007
Consition: Excellent
Including 3 heads:
1. Nd:YAG 1064/532 nm
2. Dye Impreg. 585 nm
3. Dye Impreg. 650 nm

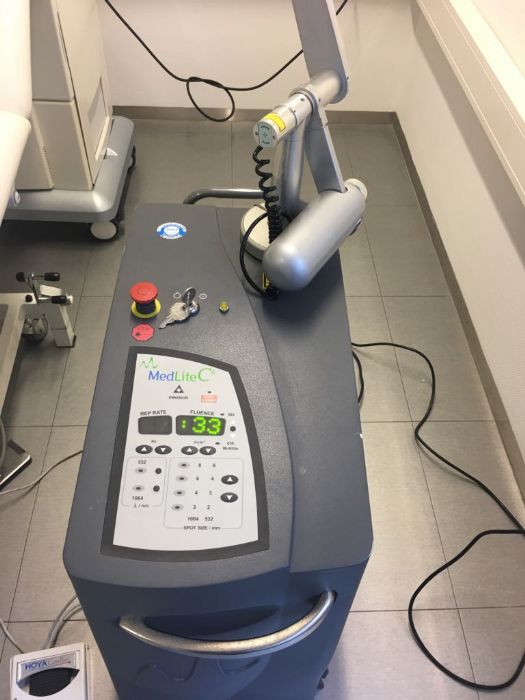

MedLite C6
Frequency-Doubled Q-Switched Nd:YAG Laser
MedLite, the original Q-Switched laser from ConBio, has long been known as the industry’s gold standard laser for multi-colored tattoo removal. MedLite C6 is also highly effective on a wide range of additional indications on all patient skin types.
Specifications:
| Nd:YAG | Dye Impregnated Polymers | 532 Lite
Wavelenth: | 1064 nm | 532 nm | 585 nm | 650 nm | 532 nm
Pulse Width: | 5-20 nsec | < 7 nsec | 5-20 nsec
Maximum Fluence Per spot size:
8 mm | 2.0 J/cm² | --------- | --------- | --------- | ---------
6 mm | 3.5 J/cm² | 1.4 J/cm² | --------- | --------- | ---------
4 mm | 8.0 J/cm² | 3.2 J/cm² | --------- | --------- | ---------
3 mm | 14 J/cm² | 5.6 J/cm² | --------- | --------- | 1.1 J/cm²
2 mm | ------------ | 12 J/cm² | 8.0 J/cm² | 5.1 J/cm² | 2.4 J/cm²
2 mm | ------------ | --------- | 6.0 J/cm² | 3.8 J/cm² | ---------
2 mm | ------------ | --------- | 4.0 J/cm² | 2.5 J/cm² | ---------
2 mm | ------------ | --------- | 2.0 J/cm² | 1.3 J/cm² | ---------
Max Rep rate:| 10 Hz | 2 Hz | 1 Hz | 10 Hz
Aiming Beam: Red, Variable intensity
Electrical requirements: 220V. Single phase, 9 Amps 110V 15 Amps
Size: 44.5"x 12" X 28.5" (113 cm x 30.5 cm x 72.5 cm)
Weight: 128 lbs (58 Kg)
