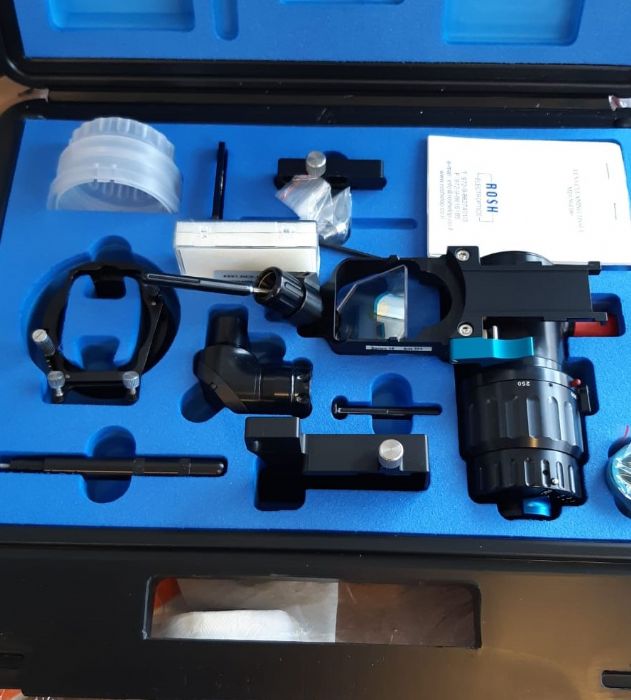

Lumenis AcuSpot 712 Micromanipulator AA2630000
General details
Lumenis AcuSpot 712 Micromanipulator P/N: AA2630000
Condition: new
Warranty: 6 months
For, Acupulse, Ultrapulse, 40C
AcuSpot 712 Series Micromanipulators Micromanipulators attach to the objective lens side of the operating microscope. When correctly set-up, the beams from the invisible carbon dioxide laser and the visible red diode laser are the same working distance as the microscope. The micromanipulator has a gimbaled mirror situated in the view path of the surgeon, to direct the CO2 laser and red aiming beams onto the tissue site. The surgeo manipulates a joystick to rotate the mirror and direct the laser beam onto the desired t ar get.To accommodate the physical dimensions of various microscopes, there are three models of the AcuSpot micromanipulator.
• AcuSpot 712 micromanipulator for microscopes with small objective lenses (for example, Zeiss OPMI 1-FC)
Features• Adjustable handrest for maximum joystick ergonomics and control• Tension adjustment on joystick• Working distance knob to parfocalize laser beam to microscope working distance (2 00-400mm)• Spot size selection knob on side of micromanipulator• Attachable drape rings for sterile laser microscope drapes• Sterilizable covers for working distance and spot size controls• Removable, sterilizable joystick handles• Adapts to common surgical microscopes• Upgradable to Digital AcuBlade scanning micromanipulator (requires joystick modification and laser equipped with SurgiTouch software and scanner)• Convenient storage case for micromanipulator, accessories and lens cleaning supplies
Condition: new
Warranty: 6 months
For, Acupulse, Ultrapulse, 40C
AcuSpot 712 Series Micromanipulators Micromanipulators attach to the objective lens side of the operating microscope. When correctly set-up, the beams from the invisible carbon dioxide laser and the visible red diode laser are the same working distance as the microscope. The micromanipulator has a gimbaled mirror situated in the view path of the surgeon, to direct the CO2 laser and red aiming beams onto the tissue site. The surgeo manipulates a joystick to rotate the mirror and direct the laser beam onto the desired t ar get.To accommodate the physical dimensions of various microscopes, there are three models of the AcuSpot micromanipulator.
• AcuSpot 712 micromanipulator for microscopes with small objective lenses (for example, Zeiss OPMI 1-FC)
Features• Adjustable handrest for maximum joystick ergonomics and control• Tension adjustment on joystick• Working distance knob to parfocalize laser beam to microscope working distance (2 00-400mm)• Spot size selection knob on side of micromanipulator• Attachable drape rings for sterile laser microscope drapes• Sterilizable covers for working distance and spot size controls• Removable, sterilizable joystick handles• Adapts to common surgical microscopes• Upgradable to Digital AcuBlade scanning micromanipulator (requires joystick modification and laser equipped with SurgiTouch software and scanner)• Convenient storage case for micromanipulator, accessories and lens cleaning supplies
