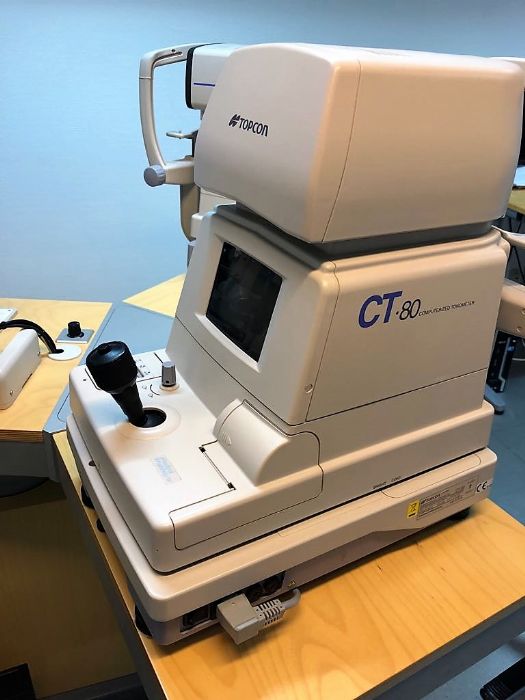

Topcon CT-80 Tonometer

Topcon CT-80 Computerized Tonometer

YOM: 2006

Condition: Good and fully operational



Topcon CT-80 Non-Contact Computerized Tonometer

The CT-80 Computerized Tonometer makes intraocular pressure measurements
easier and more comfortable than ever before. It features a 30% faster measurement
time, a triple patient safety function, and a dual sensor measuring system.

Key Features

•  Innovative dual sensor system for accurate measurements
•  Triple patient safety function
•  New alignment bar & improved air cylinder reduces the interval time between
measurements by 30%
•  Built-in printer
•  Fast, easy and accurate intraocular pressure readings
•  Internal fixation target
•  Auto measurement

SPECIFICATIONS

Measurement Range:               0－60mmHg [0－30mmHg／0－60mmHg(Selectable)]

Working Distance:                     :               11mm

Measurement Display:              TV Monitor Screen

 * R/L change-over･･･automatically detected and
displayed.

 * Up to three measurements of each eye can be
displayed and printed out.

Measurement Recording:          Built-in printer

Measurement Mod                    Auto / Manual (selectable)

Alignment:                                 When the alignment luminous spots are within the inner
 alignment mark,

 * In Auto Mode: measurement is automatically activated

 * In Manual Mode: alignment will change from a broken

        box to a solid pattern when proper alignment is

    achieved, and depressing the switch on the

        omni-directional joystick activates the measuring cycle.

Error Indication:                         When the measurement signal is not strong enough, IOP
 value is indicated in ( ) or just 'ERR' is displayed.

Adjustable Safety Stopper:        Minimum distance between the front of the instrument
  and the patient can be established in advance.

Operating Temperature: 10℃           to 40℃

Base Travel:                              44mm (back & forth) / 88mm (left & right) / 28mm(vertically)

Chinrest Vertical Travel:            68mm

External Output Terminal:         RS-232C

Power Supply:                           AC100-120V, 220-240V 50/60Hz

Power Consumption:                 80VA ("Auto-shut-off": power saving mechanism adopted)

Dimensions:                               272(W)×505(D)×430～458(H)mm

Weight:                                      Approx.18 kg
