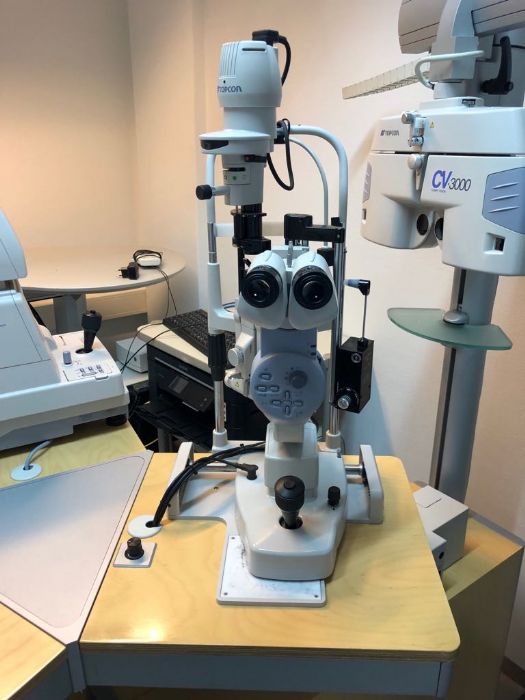

Topcon SL-D7 Slitlamp
General details
Topcon SL-D7 Slitlamp
Condition: very good
YOM: 2006
SL-D7 Shown with optional DC-4 Digital Camera attachment. For those preferring a tower configuration with halogen illumination and a wide array of features, the SL-D7 is the instrument of choice.
SPECIFICATIONS:
MICROSCOPE: SL-D7
Type: Galilean magnification changer with converging binocular tubes
Magnification Selection: 5 steps by drum rotation
EYEPIECE: 12.5x
Magnification Ratio (Field of View) 6x (35.1 mm), 10x (22.5 mm), 16x (14.1 mm)
25x (8.8 mm), 40x (5.6 mm)
SLIT ILLUMINATIONSlit Width: Continuous from 14 mm to 0 mm (at 14 mm, slit becomes a circle)
Slit Length: Continuous from 14 mm to 0 mm (at 14 mm, slit becomes a circle)
Slit Angle: 0 to 180 degrees with horizontal scanning capability
Filters: Blue, Red-Free, Amber UV Cut (Normal Use), IR Cut (Normal Use), ND (13% Transmission), Heat Insulation Exciter/Barrier (Factory Option)
Illumination Lamp: 12V, 30W halogen lamp
BASELongitudinal Movement: 90 mm
Lateral Movement: 100 mm
Fine Base Movement: 15 mm
Vertical Movement: 30 mm
CHINRESTVertical Movement: 80 mm
Fixation Target: Red-LED or White-Bulb
POWERInput (Primary): 100-120V, 220-240V, AC
Frequency: 50/60 Hz
Power Consumption: 160VA
DIMENSIONSwith Table: 550 mm x 399 mm x 760-790 mm
with Unit Table: 440 mm x 399 mm x 760-790 mm
without Table and Chinrest: 329 mm x 306 mm x 652-682 mm
WEIGHTwith Table: 19 kg
with Unit Table: 18 kg
without Table and Chinrest: 11.5 kg
Condition: very good
YOM: 2006
SL-D7 Shown with optional DC-4 Digital Camera attachment. For those preferring a tower configuration with halogen illumination and a wide array of features, the SL-D7 is the instrument of choice.
- Converging / Parallel Optics
- 5-magnification drum changer: 6x, 10x, 16x, 25x and 40x, (useful in endothelium cell observation)
- 20° Slit Beam tilt for gonioscopy observation
- Slit descentration capability
- Versatile slit adjustment, continuous or pre-set up to 14mm of width and height
- 5 built in filters: Amber, Cobalt Blue, Red-free, 13% Neutral Density and Heat Absorbent
- Rotating slit angle from 0 to 180 degrees with horizontal scanning capability
- Tonometer mount included for R900 model
- Digital Ready, accepting the DC-4 Camera Attachment
SPECIFICATIONS:
MICROSCOPE: SL-D7
Type: Galilean magnification changer with converging binocular tubes
Magnification Selection: 5 steps by drum rotation
EYEPIECE: 12.5x
Magnification Ratio (Field of View) 6x (35.1 mm), 10x (22.5 mm), 16x (14.1 mm)
25x (8.8 mm), 40x (5.6 mm)
SLIT ILLUMINATIONSlit Width: Continuous from 14 mm to 0 mm (at 14 mm, slit becomes a circle)
Slit Length: Continuous from 14 mm to 0 mm (at 14 mm, slit becomes a circle)
Slit Angle: 0 to 180 degrees with horizontal scanning capability
Filters: Blue, Red-Free, Amber UV Cut (Normal Use), IR Cut (Normal Use), ND (13% Transmission), Heat Insulation Exciter/Barrier (Factory Option)
Illumination Lamp: 12V, 30W halogen lamp
BASELongitudinal Movement: 90 mm
Lateral Movement: 100 mm
Fine Base Movement: 15 mm
Vertical Movement: 30 mm
CHINRESTVertical Movement: 80 mm
Fixation Target: Red-LED or White-Bulb
POWERInput (Primary): 100-120V, 220-240V, AC
Frequency: 50/60 Hz
Power Consumption: 160VA
DIMENSIONSwith Table: 550 mm x 399 mm x 760-790 mm
with Unit Table: 440 mm x 399 mm x 760-790 mm
without Table and Chinrest: 329 mm x 306 mm x 652-682 mm
WEIGHTwith Table: 19 kg
with Unit Table: 18 kg
without Table and Chinrest: 11.5 kg
